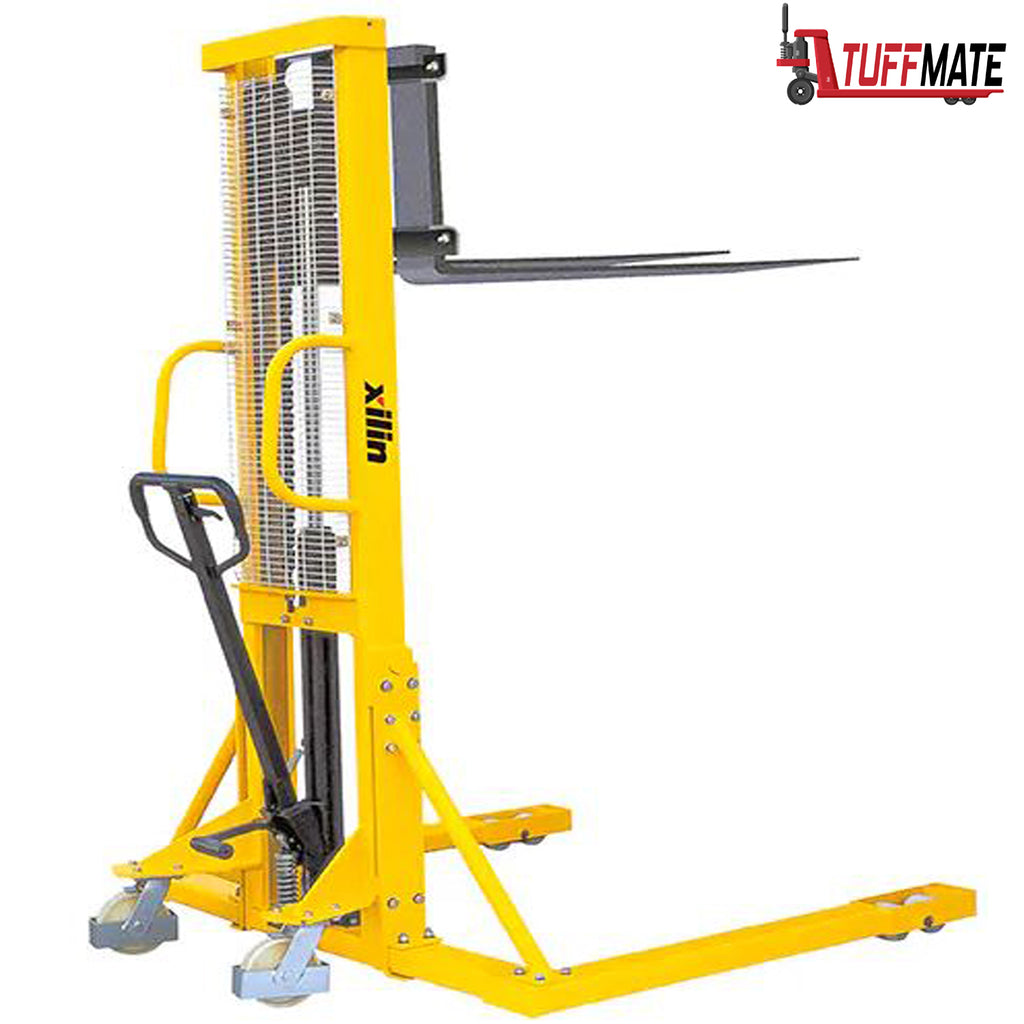

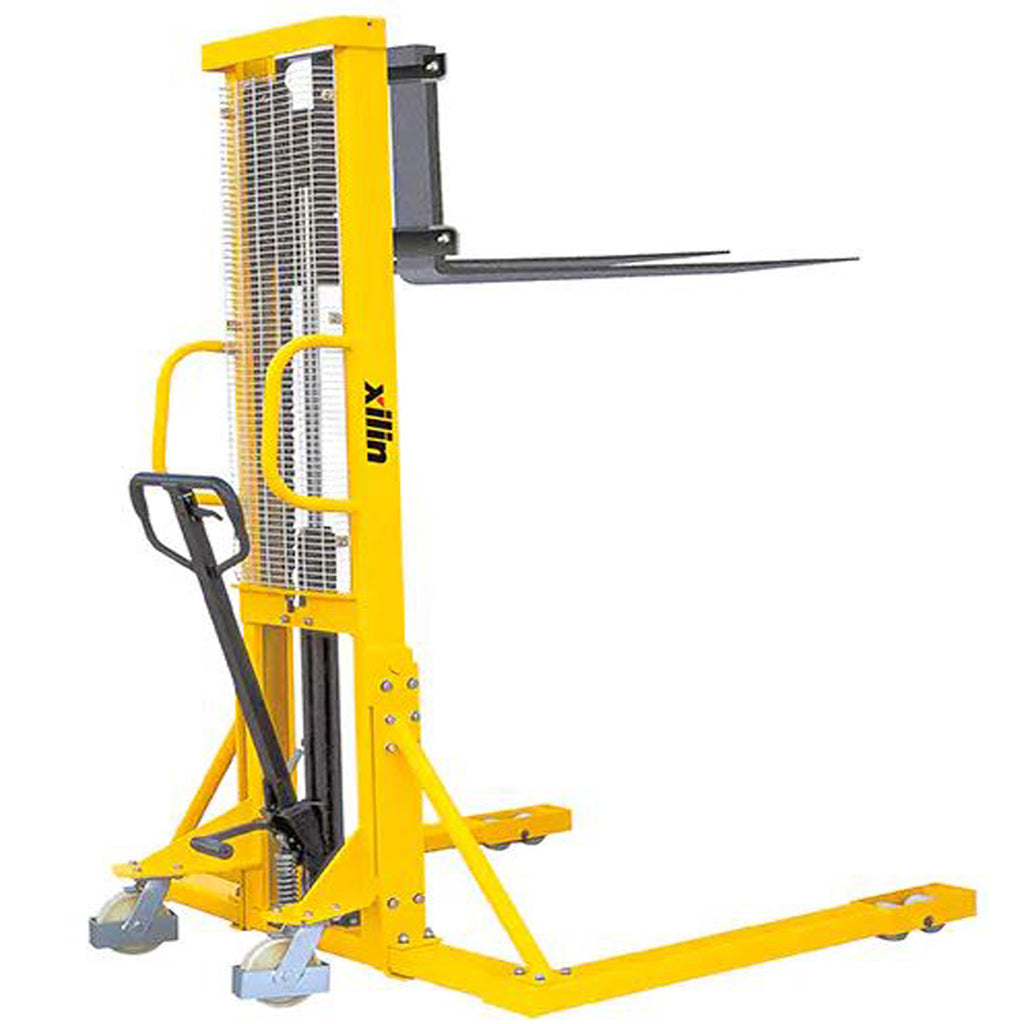

Manual Pallet Stacker 500kg – 1.6m Lift Height
Increase warehouse productivity with our Manual Pallet Stacker 500kg, designed for safe, efficient lifting and stacking of pallets up to 1.6 metres high. This robust and reliable stacker is the perfect solution for workshops, warehouses, and retail environments where powered equipment may not be suitable or necessary.
Why Choose the Manual Pallet Stacker 500kg?
This manual stacker features a strong steel mast and mesh safety cage, ensuring operator safety during lifting. The smooth-rolling PU wheels and wide outrigger legs provide stability and effortless movement, even under full load. The stacker is equipped with both hand lever and foot peg lift options, making it easy to elevate heavy pallets with minimal strain. Adjustable fork width and side grab handles give you full control when manoeuvring or turning in tight spaces.
Key Features
500kg Lift Capacity: Ideal for most standard pallet sizes
1.6m Lift Height: Easily stacks pallets to a convenient working height
Smooth PU Wheels: Easy to move and position, even when loaded
Hand and Foot Lift: Dual-action lifting for operator comfort
Wide Outrigger Legs: Enhanced stability and safety
Mesh Safety Cage: Guards the lift chain for added protection
Adjustable Fork Width: 210mm to 745mm for various pallet types
Side Grab Handles: Improved control for sideways movement
Foot Operated Brakes: Secure positioning during operation
Smooth Descent Control: Ensures safe, controlled lowering
Product Specifications
Max Load Capacity: 500kg
Max Lift Height: 1600mm
Straddle Outside Legs Width: 1300mm
Fork Length: 1050mm
Overall Length: 1610mm
Overall Width: 1525mm
Stacker Height: 1990mm
Fork Width (Adjustable): 210mm – 745mm
Weight: 220kg
Ideal For
Warehouses, workshops, and retail stores
Stacking and moving pallets
Environments without powered lifting equipment
Additional Information
FREE Delivery: On UK mainland orders over £100. See delivery information.
For more, visit modernstoves.co.uk.
Need help or a free quotation? Call 0161 439 1400.
Pallet Lift Stacker 500kg Lift Capacity Lift Height 1.6m
