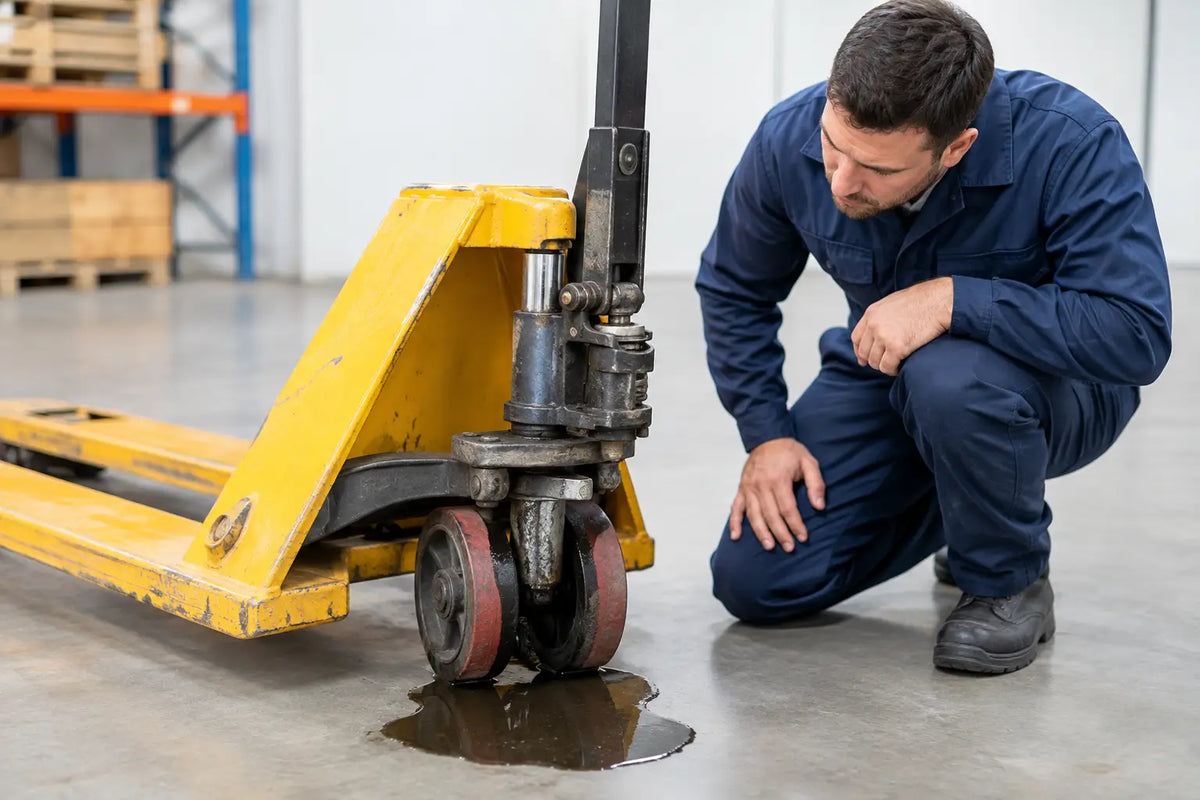

A pallet truck leaking hydraulic oil is more than a housekeeping problem. A small puddle beneath the pump can quickly become reduced lift height, a load that will not stay raised, slippery flooring and an unsafe manual-handling job. Catch the fault early and most problems are easier, cheaper and safer to put right.

A hand pallet truck works hard with few moving parts, but its hydraulic unit relies on clean oil, sound seals and the right operating pressure. The location, colour and timing of the leak usually point you towards the cause. Start there rather than simply topping up the oil and carrying on.

Why Is Your Pallet Jack Leaking?

Hydraulic oil is held in a small reservoir and pressurised by the pump mechanism when you work the handle. It then moves through the hydraulic unit to raise the steering-end assembly and lift the forks. Any damaged seal, worn valve or cracked component can give oil a route out.

The most common leaks appear around the pump piston, release valve, handle pivot or hydraulic cylinder. A wet patch around the top of the pump often suggests a worn piston seal or O-ring. Oil coming from the release valve area can indicate a damaged valve seal, dirt under the valve seat or an adjustment problem. If the unit leaks only after lifting a heavy pallet, internal seals may be allowing oil past under pressure.

Do not assume every dark mark is hydraulic oil. Grease around pivot points is normal in small amounts, while oil transferred from a dirty warehouse floor can collect around the wheels. Wipe the truck clean first, then use it briefly on dry cardboard or clean concrete to see where fresh fluid starts to appear.

Common causes at a glance

A pallet truck may leak because of:

• Perished, cut or flattened seals and O-rings
• A loose, damaged or contaminated release valve
• Overfilled, unsuitable or contaminated hydraulic oil
• A worn pump piston, scored cylinder or cracked hydraulic housing
• Corrosion caused by damp storage, wash-down areas or outdoor use

Make the Area Safe Before Checking the Leak

Never inspect a hydraulic leak with a loaded pallet raised on the forks. Lower the forks fully, remove the load and park the pallet truck on level ground. Keep hands and feet away from the linkage while someone operates the handle.

Hydraulic oil makes smooth warehouse floors hazardous, particularly near pedestrian routes, racking and loading doors. Contain and clean the spill using suitable absorbent material, then dispose of oil-soaked waste in line with your site procedures. If oil has reached a public area, vehicle route or drain, treat it as a spill incident rather than a simple maintenance task.

Before dismantling anything, check the rating plate and manual for the correct oil type and service method. Hydraulic systems are not forgiving of guesswork. The wrong fluid can swell seals, reduce performance in cold weather or cause further leakage.

How to Find the Source of the Leak

With the forks down and the outside of the pump unit clean, inspect the pallet truck in good light. Look first at the hydraulic pump body, the release valve and the point where the pump piston enters the housing. Work the handle slowly a few times and watch for fresh oil.

If no leak is visible while unloaded, raise the forks without a pallet and leave them for several minutes. Forks that slowly descend without an external leak may have an internal bypass through worn seals or a valve that is not seating correctly. That fault still needs attention, even if there is no oil on the floor.

Next, check the control chain or linkage between the handle and release mechanism. If the release valve is held slightly open because the chain is too tight or the linkage is bent, the truck may struggle to lift and can seep around the valve. Adjustment is possible on many models, but it needs a careful approach. An over-adjusted valve can stop the forks holding a load at all.

Inspect the hydraulic housing for impact damage and corrosion. A pallet truck that has been pushed into racking, dropped from a loading bay edge or repeatedly used on broken ground can develop a crack or a distorted component. A cracked pump casting is not a seal-replacement job. Take the truck out of service and replace the hydraulic unit or the pallet truck as appropriate.

Can You Repair a Leaking Pallet Truck Yourself?

It depends on the fault, the age of the equipment and whether the correct parts are available. Replacing an external O-ring, cleaning a valve and refilling the reservoir can be a sensible workshop task for a competent user. A scored cylinder bore, damaged piston rod or failed internal pressure valve is usually better handled by a qualified repairer or resolved by replacing the pump assembly.

A seal kit is only useful when it matches the exact pump design. Pallet trucks can look alike while using different valve threads, pistons and seal sizes. Forcing a near-match seal into place may create a short-term fix that fails under load. Record the model, capacity and any serial details before ordering parts.

If you decide to service the unit, work cleanly. Dirt is a major cause of hydraulic faults. Clean around the filler point before opening it, use only the specified hydraulic oil and keep loose debris away from the reservoir. Reassemble carefully, then bleed the system as directed by the manufacturer so trapped air does not cause spongy lifting or inconsistent fork height.

After any repair, test the truck unloaded first. Check for smooth lifting, controlled lowering and no visible seepage. Then test it with a suitable load in a clear area, staying within the rated capacity. Do not return it to a busy warehouse run until it holds the load securely and the controls operate predictably.

When Replacement Is the Safer Choice

There comes a point where repeated repairs cost more in downtime than a new pallet truck. Consider replacement if the hydraulic body is cracked, corrosion is extensive, parts are unavailable or the truck is leaking alongside worn steer wheels, damaged fork rollers and a loose handle assembly.

For frequent use, choose equipment that matches the job rather than buying on capacity alone. Fork length and width need to suit your pallets. The truck also needs wheels appropriate to the floor surface, enough clearance for thresholds and a dependable hydraulic unit for the loads being moved. A 2,500 kg rating is valuable, but it does not make a pallet truck suitable for every pallet type or site condition.

For lighter, occasional moves, a well-maintained manual pallet truck is often the most practical answer. For high-volume work, long travel distances or repeated loading activity, an electric pallet truck may reduce physical strain and improve throughput. The right choice depends on the work pattern, not just the heaviest pallet on site.

Preventing Future Hydraulic Leaks

A few simple habits extend the life of a pallet truck. Avoid leaving the forks raised when it is parked, as this keeps the hydraulic system under unnecessary strain. Do not drag the truck sideways or force it over high thresholds with a full pallet. Keep wheels clear of shrink-wrap, banding and debris, which can increase resistance and encourage operators to overload the handle.

Store the truck under cover on a clean, dry floor wherever possible. Regularly wipe down the pump area, check for seepage and report changes in lift performance early. Small repairs are far easier before contaminated oil, damaged seals and worn components turn a reliable workhorse into an out-of-service problem.

A pallet truck should make heavy loads easier to move, not add risk to the job. Deal with a leak as soon as you spot it, use the right repair route for the fault and keep dependable equipment ready for the next TUFF job.
